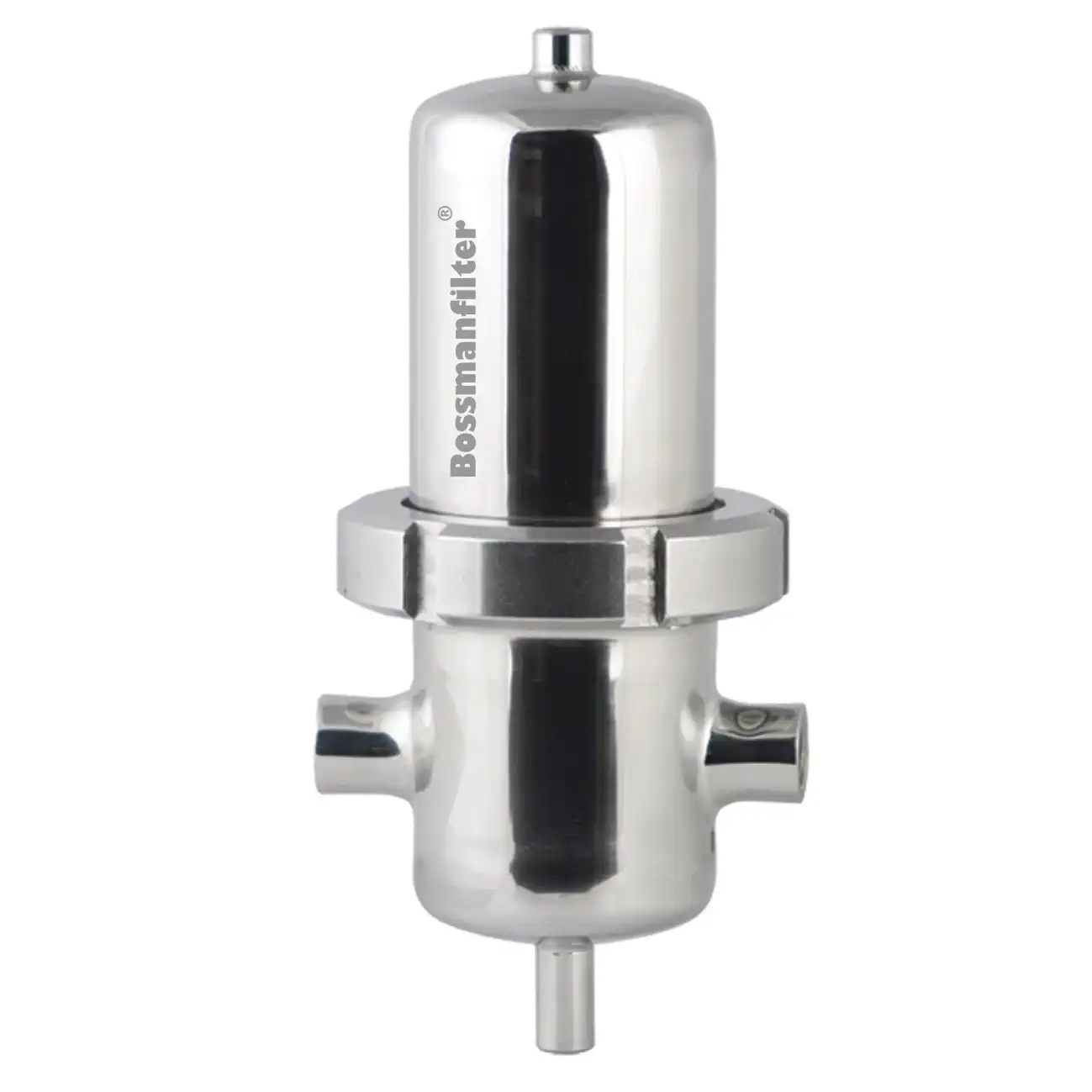

Culinary steam filter
Culinary-steam-filter have been specifically designed to provide culinary grade steam to the food and beverage industry.With polished stainless steel housings and all materials conforming to FDA regulations for direct food contact, these filters are ideally suited for removing contaminants from steam.The pleated stainless steel elements incorporate a positive double o-ring click-lock seal and are 100% integrity tested prior to shipment for reliable performance.This range of filters available with connections from 1/4" to 3" and rated flows from 15 to 1780 lbs/hr.We also offer a broad range of steam filters for OEM customers, including culinary steam filters, clean steam filters,sanitary steam filters, stainless steel steam filters, and so on.
Culinary-steam-filter shall be installed at all points-of-use where steam either directly or indirectly comes in contact with food or food contact surfaces.
Specifications
| Product Name | Culinary steam filter |
| Brand | Bossmanfilter |
| design operating pressure range | 0 to 232 psi |
| Available capacity | 60, 90, 120, 180, 270, 360, 480, 720, 1920, 4320, 7690 m3/hr |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| drain & vent connections | 1/4" BSP or NPT |
| Filter housing material | 1.4301 quality 304 stainless steel |
| filter housing polishing | passivated & polished to grade Ra ‹1.6M |
| filter housing seals | aseptic EPDM |
| particle removal | 1µ, 5µ |
| particle removal efficiency | 99% |
| continuous operating temperature range | 212 to 392 Deg.F |
| media material | pleated 316 stainless steel mesh |
| media support & endcap material | SS316 |
| element to housing connection | positive click lock dual silicone o-rings |
| differential pressure - clean | 1.0 psid |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼ Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼ Adhesives ◼ Oils ◼Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼ Cutting Fluids/Oils ◼ High Viscosity Fluid |
