Surface Mount Rubber Patch Thermocouple

General use thermocouples molded into silicone rubber with self-adhesive backing for easily measuring the temperatures of curved or flat surfaces up to 200 Dec C.

A stick on self-adhesive surface mount silicon rubber patch type K thermocouple type with flexible lead.

Surface Mount Rubber Patch Thermocouple

Specifications

Product Name Surface Mount Rubber Patch Thermocouple
Brand Bossmanfilter
Temp Range -30 to 150 ℃
Patch Size 16 x 37mm
Lead length 1,2,5m or to order
Lead Wire 7 / 0.2 PFA /PFA flat twin
Accuracy Class 1
Termination 50mm stripped wires
Features
  • Type K Class 1 accuracy
  • Self-adhesive foil backing for faster response
  • Flexible silicone rubber patch
  • Temperature range -30 to +150 ℃
Applications
  • Heating and ventilation ducts (HVAC)
  • Pies or curved surfaces
  • Flexible silicone rubber patch
  • Surface measurement

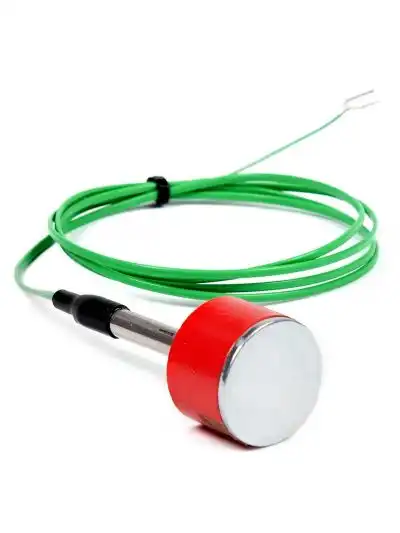

Magnetic Thermocouple

Magnetic thermocouple sensor with spring loaded tip, ideal for surface measurement applications.

Magnetic Thermocouple

Specifications

Product Name Magnetic Thermocouple
Brand Bossmanfilter
Type K, T, J or N
Temp Range 0 to 400 ℃
Lead wire 2 mtr or to order
Junction Grounded
Size 25.4mm dia x 16mm height
Pull Force 3.4 Kg
Accuracy Class 1
Termination Stripped tails,mini or standard Plug
Features
  • Magnet will hold 90% of its pull at 400 ℃
  • Thermocouple types K, T, J or N
  • Spring loaded thermocouple
  • Class 1 accuracy
  • Grounded junction
Applications
  • Surface temperature measurement on ferrous metals
  • Temperature mapping
  • Short term positioning

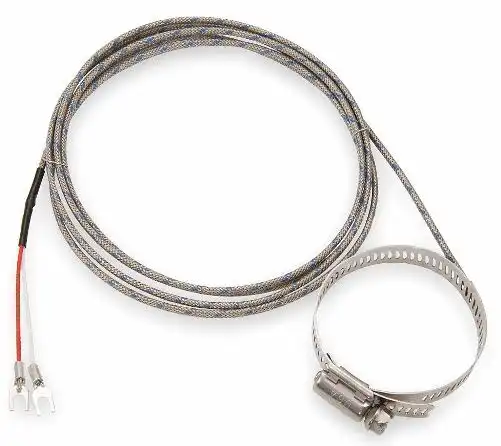

Pipe Clip Thermocouple

Jubilee style adjustable thermocouple used in the surface temperature measurement of pipes.

Pipe Clip Thermocouple

Specifications

Product Name Pipe Clip Thermocouple
Brand Bossmanfilter
Type K,J or T
Temp Range -100 to +400 ℃
To suit pipe diameter 13-20mm ,20-30mm,30-50mm,50-100mm,150-300mm
Accuracy Class-1
Junction Grounded
Lead wire 7/0.2mm st/st Over braid
Material Stainless steel jubilee clip
Termination Stripped tails,mini or standard Plug
Features
  • Type K, J or T thermocouples
  • -100 to 400 ℃
  • Grounded junction
  • Custom lengths available
  • To suit pipe diameters 13-20mm, 20-30mm, 30-50mm, 50-100mm, 150 "“ 300mm
Applications
  • Pipe Temperatures
  • Circular surfaces
  • Fixed applications

Crocodile Clip Surface Thermocouple

Type K heavy duty crocodile clip thermocouple for surface measurement of pipes or structures.

Crocodile Clip Surface Thermocouple

Specifications

Product Name Crocodile Clip Surface Thermocouple
Brand Bossmanfilter
Type K
Temp Range -60 to +150 ℃
Length 1,2 and 5 mtr or to order
Accuracy Class-1
Junction Grounded
Jaw Opening 7.5mm,Heavu duty available to 40mm
Termination Stripped tails,mini or standard Plug
Features
  • 40mm jaw opening
  • Plastic grip handles
  • Mini plug connection
  • Made from class 1 material
Applications
  • Pipes
  • HVAC
  • Flow and return radiator balancing
  • Clipping on shelves in ovens
  • Material testing
  • Heating
  • Ventilation
  • Air Conditioning
  • Pipe Temperatures
  • Plumbing
